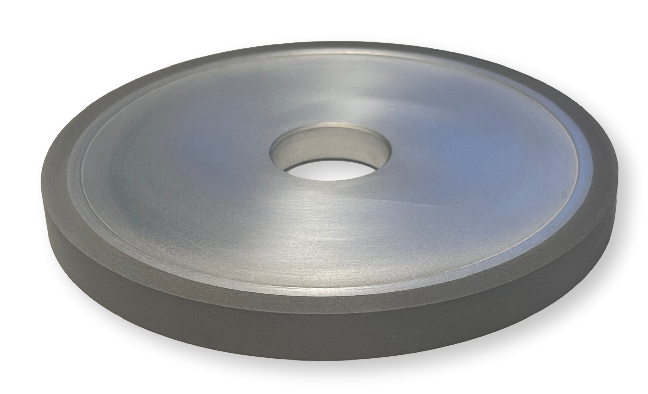

1A1 Diamond Wheels
Braemar’s 1A1 diamond wheel is one of the most common standard shapes, used on a surface grinder, OD of ID grinders to produce very flat, smooth, and precise surfaces on carbide, ceramic, glass, or other hard materials.
Key Features
- Shape: Flat, continuous rim, straight sides.
- Abrasive: Diamond
- Uses: Precision grinding of very hard, brittle materials like ceramics, glass, quartz, and advanced composites.
Typical Applications
- Glass edge grinding
- Ceramic and quartz grinding
- PCB and wafer processing
Call (480) 966-9311 or Add to Quote for pricing.
Specifications
3A1 Diamond Wheel
3A1 Diamond Wheel
Diameter
0.625"
0.750"
0.750"
1.000"
1.235"
1.500"
2.000"
2.000"
3.000"
3.000"
5.000"
6.000"
7.000"
8.000"
10.000"
12.000"
14.000"
16.000"
18.000"
20.000"
22.000"
24.000"
26.000"
28.000"
30.000"
Width
0.375"
0.500"
0.500"
0.500"
1.000"
0.500"
0.500"
1.000"
0.500"
1.000"
0.125"-0.500"
0.125"-0.500"
0.125"-0.500"
0.125"-0.500"
0.125"-0.500"
0.125"-0.500"
0.250"-1.000"
0.250"-1.000"
0.250"-1.000"
0.250"-1.000"
0.250"-1.000"
0.250"-1.000"
0.250"-1.000"
0.250"-1.000"
0.250"-1.000"
Arbor Hole
0.250"
0.250"
0.375"
0.375"
0.375"
0.375"
0.375"
0.375"
0.375"
0.375"
1.250"
1.250"
1.250"
1.250"
1.250"
5.000"
5.000"
5.000"
5.000"
12.000"
12.000"
12.000"
12.000"
12.000"
12.000"
Grit Size
100-600
100-600
100-600
100-600
100-600
100-600
100-600
100-600
100-600
100-600
100-600
100-600
100-600
100-600
100-600
100-600
100-600
100-600
100-600
100-600
100-600
100-600
100-600
100-600
100-600
Counter Bore
0.400" X 0.187"
0.400" X 0.187"
0.400" X 0.187"
0.500" X 0.250"
0.750" X 0.500"
0.500" X 0.250"
0.750" X 0.500"
0.750" X 0.500"
1.000" X 0.250"
1.000" X 0.250"
3A1 Diamond Wheel:
3A1 Diamond Wheel
Diameter:
0.625"
Width:
0.375"
Arbor Hole:
0.250"
Grit Size:
100-600
Counter Bore:
0.400" X 0.187"
Diameter:
0.750"
Width:
0.500"
Arbor Hole:
0.250"
Grit Size:
100-600
Counter Bore:
0.400" X 0.187"
Diameter:
0.750"
Width:
0.500"
Arbor Hole:
0.375"
Grit Size:
100-600
Counter Bore:
0.400" X 0.187"
Diameter:
1.000"
Width:
0.500"
Arbor Hole:
0.375"
Grit Size:
100-600
Counter Bore:
0.500" X 0.250"
Diameter:
1.235"
Width:
1.000"
Arbor Hole:
0.375"
Grit Size:
100-600
Counter Bore:
0.750" X 0.500"
Diameter:
1.500"
Width:
0.500"
Arbor Hole:
0.375"
Grit Size:
100-600
Counter Bore:
0.500" X 0.250"
Diameter:
2.000"
Width:
0.500"
Arbor Hole:
0.375"
Grit Size:
100-600
Counter Bore:
0.750" X 0.500"
Diameter:
2.000"
Width:
1.000"
Arbor Hole:
0.375"
Grit Size:
100-600
Counter Bore:
0.750" X 0.500"
Diameter:
3.000"
Width:
0.500"
Arbor Hole:
0.375"
Grit Size:
100-600
Counter Bore:
1.000" X 0.250"
Diameter:
3.000"
Width:
1.000"
Arbor Hole:
0.375"
Grit Size:
100-600
Counter Bore:
1.000" X 0.250"
Diameter:
5.000"
Width:
0.125"-0.500"
Arbor Hole:
1.250"
Grit Size:
100-600
Diameter:
6.000"
Width:
0.125"-0.500"
Arbor Hole:
1.250"
Grit Size:
100-600
Diameter:
7.000"
Width:
0.125"-0.500"
Arbor Hole:
1.250"
Grit Size:
100-600
Diameter:
8.000"
Width:
0.125"-0.500"
Arbor Hole:
1.250"
Grit Size:
100-600
Diameter:
10.000"
Width:
0.125"-0.500"
Arbor Hole:
1.250"
Grit Size:
100-600
Diameter:
12.000"
Width:
0.125"-0.500"
Arbor Hole:
5.000"
Grit Size:
100-600
Diameter:
14.000"
Width:
0.250"-1.000"
Arbor Hole:
5.000"
Grit Size:
100-600
Diameter:
16.000"
Width:
0.250"-1.000"
Arbor Hole:
5.000"
Grit Size:
100-600
Diameter:
18.000"
Width:
0.250"-1.000"
Arbor Hole:
5.000"
Grit Size:
100-600
Diameter:
20.000"
Width:
0.250"-1.000"
Arbor Hole:
12.000"
Grit Size:
100-600
Diameter:
22.000"
Width:
0.250"-1.000"
Arbor Hole:
12.000"
Grit Size:
100-600
Diameter:
24.000"
Width:
0.250"-1.000"
Arbor Hole:
12.000"
Grit Size:
100-600
Diameter:
26.000"
Width:
0.250"-1.000"
Arbor Hole:
12.000"
Grit Size:
100-600
Diameter:
28.000"
Width:
0.250"-1.000"
Arbor Hole:
12.000"
Grit Size:
100-600
Diameter:
30.000"
Width:
0.250"-1.000"
Arbor Hole:
12.000"
Grit Size:
100-600
