2A2T ROTARY SURFACE GRINDING WHEELS
2A2T Rotary Surface Grinding Wheels

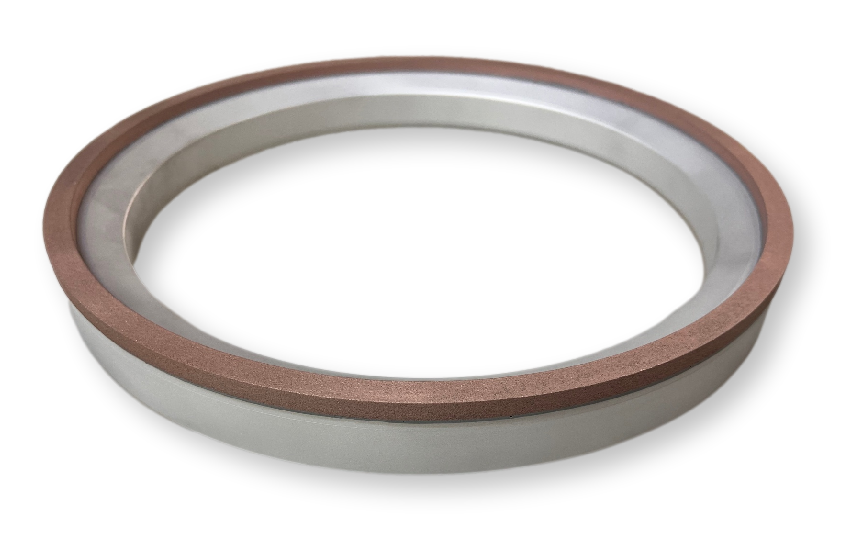

The 2A2T wheel shape is a ring style rotary (peripheral) surface grinding wheel designed for face grinding. It’s commonly used in precision surface grinding machines—especially rotary table grinders—for high-accuracy finishing of flat surfaces.
Key Features
- Shape: Cup wheel with a shallow depth and a flat grinding face.
- Grinding Face Location: On the flat rim of the wheel, not the side.
- Slots or interruptions are common for coolant flow
.
Typical Applications
- Rotary surface grinders for:
- Tungsten carbide plates
- Ceramic substrates
- Optical glass
- Ferrites
- PCD/PCBN tooling
- Used when consistent flatness and high parallelism are critical.
Advantages
- High material removal rate with good surface finish.
- Long wheel life when properly dressed.
- Reduced heat generation (especially with metal bond wheels and coolant use).
Call (480) 966-9311 or Add to Quote for pricing.
Specifications
(D) DIAMETER
10.000"
10.000"
11.000"
12.000"
14.000"
16.000"
18.000"
20.000"
24.000"
26.000"
(T) THICKNESS
1.000"
1.500
1.000"
1.000"
1.000"
1.000"
1.000"
1.500"
1.500"
1.500"
(H) ID/HOLE
8.000"
6.695"
9.000"
10.000"
12.000"
14.000"
16.000"
18.000"
22.000"
24.000"
(W) RIM WIDTH
0.250" -1.000"
0.250" -1.000"
0.250" -1.000"
0.250" -1.000"
0.250" -1.000"
0.500" -1.000"
0.500" -1.000"
0.500" -1.000"
0.750" 1.000"
0.750" 1.000"
(BHC) HOLE CIRCLE
9.000"
7.500"
10.000"
11.000"
13.000"
15.000"
17.000"
19.000"
23.000"
25.000"
THREADED HOLES
HOLES & THREAD
HOLES & THREAD
HOLES & THREAD
HOLES & THREAD
HOLES & THREAD
HOLES & THREAD
HOLES & THREAD
HOLES & THREAD
HOLES & THREAD
HOLES & THREAD
(X) DIAMOND DEPTH
0.250" - 0.500"
0.250" - 0.500"
0.250" - 0.500"
0.250" - 0.500"
0.250" - 0.500"
0.250" - 0.500"
0.250" - 0.500"
0.250" - 0.500"
0.250" - 0.500"
0.250" - 0.500"
(D) DIAMETER:
10.000"
(T) THICKNESS:
1.000"
(H) ID/HOLE:
8.000"
(W) RIM WIDTH:
0.250" -1.000"
(BHC) HOLE CIRCLE:
9.000"
THREADED HOLES:
HOLES & THREAD
(X) DIAMOND DEPTH:
0.250" - 0.500"
(D) DIAMETER:
10.000"
(T) THICKNESS:
1.500
(H) ID/HOLE:
6.695"
(W) RIM WIDTH:
0.250" -1.000"
(BHC) HOLE CIRCLE:
7.500"
THREADED HOLES:
HOLES & THREAD
(X) DIAMOND DEPTH:
0.250" - 0.500"
(D) DIAMETER:
11.000"
(T) THICKNESS:
1.000"
(H) ID/HOLE:
9.000"
(W) RIM WIDTH:
0.250" -1.000"
(BHC) HOLE CIRCLE:
10.000"
THREADED HOLES:
HOLES & THREAD
(X) DIAMOND DEPTH:
0.250" - 0.500"
(D) DIAMETER:
12.000"
(T) THICKNESS:
1.000"
(H) ID/HOLE:
10.000"
(W) RIM WIDTH:
0.250" -1.000"
(BHC) HOLE CIRCLE:
11.000"
THREADED HOLES:
HOLES & THREAD
(X) DIAMOND DEPTH:
0.250" - 0.500"
(D) DIAMETER:
14.000"
(T) THICKNESS:
1.000"
(H) ID/HOLE:
12.000"
(W) RIM WIDTH:
0.250" -1.000"
(BHC) HOLE CIRCLE:
13.000"
THREADED HOLES:
HOLES & THREAD
(X) DIAMOND DEPTH:
0.250" - 0.500"
(D) DIAMETER:
16.000"
(T) THICKNESS:
1.000"
(H) ID/HOLE:
14.000"
(W) RIM WIDTH:
0.500" -1.000"
(BHC) HOLE CIRCLE:
15.000"
THREADED HOLES:
HOLES & THREAD
(X) DIAMOND DEPTH:
0.250" - 0.500"
(D) DIAMETER:
18.000"
(T) THICKNESS:
1.000"
(H) ID/HOLE:
16.000"
(W) RIM WIDTH:
0.500" -1.000"
(BHC) HOLE CIRCLE:
17.000"
THREADED HOLES:
HOLES & THREAD
(X) DIAMOND DEPTH:
0.250" - 0.500"
(D) DIAMETER:
20.000"
(T) THICKNESS:
1.500"
(H) ID/HOLE:
18.000"
(W) RIM WIDTH:
0.500" -1.000"
(BHC) HOLE CIRCLE:
19.000"
THREADED HOLES:
HOLES & THREAD
(X) DIAMOND DEPTH:
0.250" - 0.500"
(D) DIAMETER:
24.000"
(T) THICKNESS:
1.500"
(H) ID/HOLE:
22.000"
(W) RIM WIDTH:
0.750" 1.000"
(BHC) HOLE CIRCLE:
23.000"
THREADED HOLES:
HOLES & THREAD
(X) DIAMOND DEPTH:
0.250" - 0.500"
(D) DIAMETER:
26.000"
(T) THICKNESS:
1.500"
(H) ID/HOLE:
24.000"
(W) RIM WIDTH:
0.750" 1.000"
(BHC) HOLE CIRCLE:
25.000"
THREADED HOLES:
HOLES & THREAD
(X) DIAMOND DEPTH:
0.250" - 0.500"
