Diamond Electroplated Cut Off Wheels (3.000″-6.000″)
Braemar USA Diamond Electroplated Cut Off Wheels are engineered for fast, accurate cutting of the world’s hardest and most brittle materials. Manufactured using premium synthetic diamond and a tightly controlled nickel electroplating process, these wheels deliver exceptional cutting speed, minimal heat generation, and clean, chip-free edges in demanding precision environments.
Electroplated construction exposes 100% of the diamond grain, providing a sharp, aggressive cutting action ideal for materials where surface integrity and dimensional accuracy are critical. Each wheel maintains its form without the need for dressing, ensuring consistent performance and predictable cutting results from start to finish.
Braemar USA cut off wheels are widely used in carbide tool production, optical fabrication, semiconductor wafer processing, ceramic part manufacturing, and research labs working with quartz, sapphire, glass, silicon carbide, ferrites, and advanced composites.
Key Features
-
High diamond exposure for aggressive, free-cutting action
-
Precision electroplating for uniform diamond height and reliable wheel life
-
Excellent form retention—no dressing required
-
Low heat generation reduces micro-cracks, burning, and material distortion
-
Tight OD/ID tolerances for controlled kerf geometry
-
Available in custom thicknesses, grits, and arbor sizes
Ideal Materials
-
Carbide
-
Ceramics & technical ceramics
-
Quartz, glass, fused silica
-
Sapphire
-
Ferrites & silicon carbide
-
Advanced composites & specialty materials
Applications
-
Precision cutting & sectioning
-
Optical component fabrication
-
Semiconductor wafer slicing
-
Carbide rod cutoff
-
Tube, slot, and part separation in brittle materials
-
R&D and prototyping labs
Optimize your precision cutting process with Braemar USA Diamond Electroplated Cut Off Wheels—built for speed, accuracy, and long-lasting performance across demanding industries.
Call (480) 966-9311 or Add to Quote for pricing.

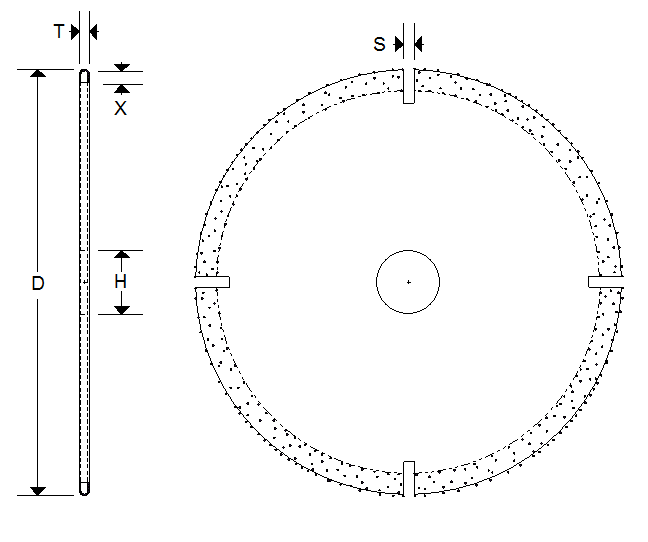

Specifications
ITEM#
DPCOSS3000F
DPCOSS3000G
DPCOSS3000H
DPCOSS3000I
DPCOSS3000J
DPCOSS3000K
DPCOSS4000A
DPCOSS4000B
DPCOSS4000C
DPCOSS4000D
DPCOSS4000E
DPCOSS4000F
DPCOSS4000G
DPCOSS4000H
DPCOSS4000I
DPCOSS4000J
DPCOSS4925A
DPCOSS5000B
DPCOSS5000C
DPCOSS5000D
0057611
DPCO60181232
DPCOSS6000C
DPCOSS6000J
DPCOSS6000L
D
3.000
3.000
3.000
3.000
3.000
3.000
4.000
4.000
4.000
4.000
4.000
4.000
4.000
4.000
4.000
4.000
4.925
5.000
5.000
5.000
6.000
6.000
6.000
6.000
6.000
T
0.095
0.065
0.024
0.075
0.133
0.140
0.095
0.095
0.095
0.115
0.085
0.085
0.095
0.095
0.095
0.095
0.115
0.115
0.215
0.110
0.010
0.018
0.035
0.090
0.065
H
0.750
1.250
0.750
0.250
0.625
0.250
0.375
0.625
0.625
0.625
0.625
0.750
0.750
0.750
0.750
0.750
0.875
0.750
0.625
0.750
1.250
1.250
0.375
0.375
0.500
X
0.150
0.312
0.150
0.125
0.250
0.250
0.200
0.200
0.250
0.150
0.250
0.300
1.000
1.000
0.125
0.275
0.150
1.000
0.250
0.200
0.200
0.100
0.200
0.250
0.250
S
(4)
N/A
N/A
N/A
N/A
N/A
(6)
(6)
N/A
N/A
(6)
N/A
(4)
N/A
(6)
(6)
(5)
(6)
N/A
(6)
N/A
N/A
N/A
N/A
N/A
GRIT
040/060
040/060
200/230
060/080
100/120
100/120
040/060
040/060
040/060
040/060
040/060
040/060
040/060
040/060
040/060
040/060
300/330
040/060
060/080
060/080
300/330
300/330
200/230
040/060
100/120
ITEM#:
DPCOSS3000F
D:
3.000
T:
0.095
H:
0.750
X:
0.150
S:
(4)
GRIT:
040/060
ITEM#:
DPCOSS3000G
D:
3.000
T:
0.065
H:
1.250
X:
0.312
S:
N/A
GRIT:
040/060
ITEM#:
DPCOSS3000H
D:
3.000
T:
0.024
H:
0.750
X:
0.150
S:
N/A
GRIT:
200/230
ITEM#:
DPCOSS3000I
D:
3.000
T:
0.075
H:
0.250
X:
0.125
S:
N/A
GRIT:
060/080
ITEM#:
DPCOSS3000J
D:
3.000
T:
0.133
H:
0.625
X:
0.250
S:
N/A
GRIT:
100/120
ITEM#:
DPCOSS3000K
D:
3.000
T:
0.140
H:
0.250
X:
0.250
S:
N/A
GRIT:
100/120
ITEM#:
DPCOSS4000A
D:
4.000
T:
0.095
H:
0.375
X:
0.200
S:
(6)
GRIT:
040/060
ITEM#:
DPCOSS4000B
D:
4.000
T:
0.095
H:
0.625
X:
0.200
S:
(6)
GRIT:
040/060
ITEM#:
DPCOSS4000C
D:
4.000
T:
0.095
H:
0.625
X:
0.250
S:
N/A
GRIT:
040/060
ITEM#:
DPCOSS4000D
D:
4.000
T:
0.115
H:
0.625
X:
0.150
S:
N/A
GRIT:
040/060
ITEM#:
DPCOSS4000E
D:
4.000
T:
0.085
H:
0.625
X:
0.250
S:
(6)
GRIT:
040/060
ITEM#:
DPCOSS4000F
D:
4.000
T:
0.085
H:
0.750
X:
0.300
S:
N/A
GRIT:
040/060
ITEM#:
DPCOSS4000G
D:
4.000
T:
0.095
H:
0.750
X:
1.000
S:
(4)
GRIT:
040/060
ITEM#:
DPCOSS4000H
D:
4.000
T:
0.095
H:
0.750
X:
1.000
S:
N/A
GRIT:
040/060
ITEM#:
DPCOSS4000I
D:
4.000
T:
0.095
H:
0.750
X:
0.125
S:
(6)
GRIT:
040/060
ITEM#:
DPCOSS4000J
D:
4.000
T:
0.095
H:
0.750
X:
0.275
S:
(6)
GRIT:
040/060
ITEM#:
DPCOSS4925A
D:
4.925
T:
0.115
H:
0.875
X:
0.150
S:
(5)
GRIT:
300/330
ITEM#:
DPCOSS5000B
D:
5.000
T:
0.115
H:
0.750
X:
1.000
S:
(6)
GRIT:
040/060
ITEM#:
DPCOSS5000C
D:
5.000
T:
0.215
H:
0.625
X:
0.250
S:
N/A
GRIT:
060/080
ITEM#:
DPCOSS5000D
D:
5.000
T:
0.110
H:
0.750
X:
0.200
S:
(6)
GRIT:
060/080
ITEM#:
0057611
D:
6.000
T:
0.010
H:
1.250
X:
0.200
S:
N/A
GRIT:
300/330
ITEM#:
DPCO60181232
D:
6.000
T:
0.018
H:
1.250
X:
0.100
S:
N/A
GRIT:
300/330
ITEM#:
DPCOSS6000C
D:
6.000
T:
0.035
H:
0.375
X:
0.200
S:
N/A
GRIT:
200/230
ITEM#:
DPCOSS6000J
D:
6.000
T:
0.090
H:
0.375
X:
0.250
S:
N/A
GRIT:
040/060
ITEM#:
DPCOSS6000L
D:
6.000
T:
0.065
H:
0.500
X:
0.250
S:
N/A
GRIT:
100/120
