Diamond Electroplated Cut Off Wheels (0.800″-2.999″)
Diamond electroplated 1A1R cut-off wheels.
-

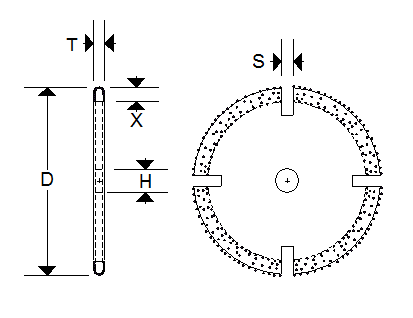

The 1A1R shape is a thin, flat, round wheel with a rim (R) on the periphery coated with diamond abrasive.
-
These particular wheels are electroplated, meaning a single layer of diamond grit is bonded to the steel core using a nickel plating process.
-
The slots in the rim are designed for cooling and reducing stress during cutting.
-
Applications: precision cutting of hard and brittle materials such as glass, ceramics, quartz, silicon wafers, gemstones, and carbide.
Call (480) 966-9311 or Add to Quote for pricing.
Specifications
ITEM#
DPC0SS0875A
DPC0SS0875B
DPC0SS1000C
DPC0SS1000A
DPC0SS1000B
DPC0SS1500A
DPC0SS1500B
DPC0SS1500C
DPC0SS1750A
DPC0SS2000B
DPC0SS2000D
DPC0SS2000G
DPC0SS2500A
DPC0SS3000A
DPC0SS3000C
DPC0SS3000D
DPC0SS3000E
D
0.875
0.875"
1.000
1.000
1.000
1.500
1.500
1.500
1.750
2.000
2.000
2.000
2.500
3.000
3.000
3.000
3.000
T
0.008
0.010
0.031
0.022
0.029
0.085
0.085
0.090
0.114
0.065
0.085
0.085
0.085
0.095
0.080
0.085
0.085
H
0.068
0.068
0.062
0.062
0.062
0.250
0.250
0.250
0.250
0.250
0.250
0.250
0.250
0.750
0.250
0.375
0.375
X
N/A
N/A
N/A
0.125
0.125
0.250
0.250
0.375
0.375
0.250
0.250
0.125
0.250
0.250
0.300
0.300
0.300
SLOTS
N/A
N/A
N/A
N/A
N/A
(4)
N/A
N/A
N/A
N/A
N/A
(4)
N/A
N/A
(4)
N/A
(4)
GRIT
200/235
170/200
140/170
140/170
140/170
040/060
040/060
040/060
040/060
040/060
040/060
040/060
040/060
040/060
040/060
040/060
040/060
ITEM#:
DPC0SS0875A
D:
0.875
T:
0.008
H:
0.068
X:
N/A
SLOTS:
N/A
GRIT:
200/235
ITEM#:
DPC0SS0875B
D:
0.875"
T:
0.010
H:
0.068
X:
N/A
SLOTS:
N/A
GRIT:
170/200
ITEM#:
DPC0SS1000C
D:
1.000
T:
0.031
H:
0.062
X:
N/A
SLOTS:
N/A
GRIT:
140/170
ITEM#:
DPC0SS1000A
D:
1.000
T:
0.022
H:
0.062
X:
0.125
SLOTS:
N/A
GRIT:
140/170
ITEM#:
DPC0SS1000B
D:
1.000
T:
0.029
H:
0.062
X:
0.125
SLOTS:
N/A
GRIT:
140/170
ITEM#:
DPC0SS1500A
D:
1.500
T:
0.085
H:
0.250
X:
0.250
SLOTS:
(4)
GRIT:
040/060
ITEM#:
DPC0SS1500B
D:
1.500
T:
0.085
H:
0.250
X:
0.250
SLOTS:
N/A
GRIT:
040/060
ITEM#:
DPC0SS1500C
D:
1.500
T:
0.090
H:
0.250
X:
0.375
SLOTS:
N/A
GRIT:
040/060
ITEM#:
DPC0SS1750A
D:
1.750
T:
0.114
H:
0.250
X:
0.375
SLOTS:
N/A
GRIT:
040/060
ITEM#:
DPC0SS2000B
D:
2.000
T:
0.065
H:
0.250
X:
0.250
SLOTS:
N/A
GRIT:
040/060
ITEM#:
DPC0SS2000D
D:
2.000
T:
0.085
H:
0.250
X:
0.250
SLOTS:
N/A
GRIT:
040/060
ITEM#:
DPC0SS2000G
D:
2.000
T:
0.085
H:
0.250
X:
0.125
SLOTS:
(4)
GRIT:
040/060
ITEM#:
DPC0SS2500A
D:
2.500
T:
0.085
H:
0.250
X:
0.250
SLOTS:
N/A
GRIT:
040/060
ITEM#:
DPC0SS3000A
D:
3.000
T:
0.095
H:
0.750
X:
0.250
SLOTS:
N/A
GRIT:
040/060
ITEM#:
DPC0SS3000C
D:
3.000
T:
0.080
H:
0.250
X:
0.300
SLOTS:
(4)
GRIT:
040/060
ITEM#:
DPC0SS3000D
D:
3.000
T:
0.085
H:
0.375
X:
0.300
SLOTS:
N/A
GRIT:
040/060
ITEM#:
DPC0SS3000E
D:
3.000
T:
0.085
H:
0.375
X:
0.300
SLOTS:
(4)
GRIT:
040/060
