Resin bond diamond cutoff wheels can be used  wet or dry, coolant is always preferred.  Dressing a resin wheel can be easily done with a brake dresser or a SDDD dresser and cleaned with an aluminum oxide dressing stick. Resin bond wheels are more forgiving resulting in a better finish.




1A1 CBN WHEELS

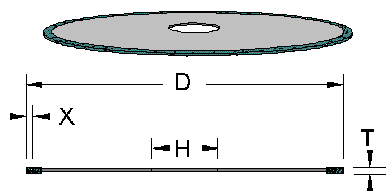

TYPE
DIAMETER
WIDTH
ARBOR HOLE
SPECS
Resin Bond Diamond 1A1R
3.000
0.032
0.750
D 100/120 R 100 B 0.250D
Resin Bond Diamond 1A1R
3.000
0.032
20.00mm
D 100/120 R 100 B 0.250D
Resin Bond Diamond 1A1R
4.000
0.032
0.750
D 100/120 R 100 B 0.250D
Resin Bond Diamond 1A1R
4.000
0.035
20.00mm
D 100/120 R 100 B 0.250D
Resin Bond Diamond 1A1R
6.000
0.032
1.250
D 100/120 R 100 B 0.250D
Resin Bond Diamond 1A1R
6.000
0.040
1.250
D 100/120 R 100 B 0.250D
Resin Bond Diamond 1A1R
6.000
0.060
1.250
D 100/120 R 100 B 0.250D
Resin Bond Diamond 1A1R
7.000
0.039
1.250
D 100/120 R 100 B 0.250D
Resin Bond Diamond 1A1R
8.000
0.045
1.250
D 100/120 R 100 B 0.250D
Resin Bond Diamond 1A1R
10.000
0.065
1.250
D 100/120 R 100 B 0.250D
Resin Bond Diamond 1A1R
12.000
0.065
1.250
D 100/120 R 100 B 0.250D
Resin Bond Diamond 1A1R
14.000
0.070
5.000
D 100/120 R 100 B 0.250D
Resin Bond Diamond 1A1R
16.000
0.080
5.000
D 100/120 R 100 B 0.250D
