Chisel Diamond Dressing Tools
BRAEMAR USA BGSUSA.COM DIAMOND AND CBN WHEELS & DIAMOND AND CBN TOOLS

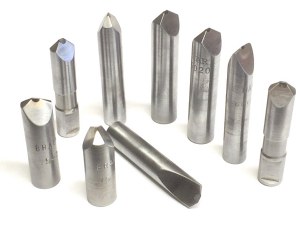

Chisel Diamond dressing Tools are used for generating  concave and convex radii on all wheel sizes; for contour dressing on centerless grinders; and for angle head dressing. These tools use the finest quality elongated diamonds and are accurately lapped to the required angle. Specify angle, radius if any, and shank size. All of our tools are manufactured with the highest quality natural diamond stones.

DIAMOND CHISEL DRESSER


DIAMOND CHISEL TOOL DDT0310  0.375 X 2.000 60°   0.005" RADIUS
DIAMOND CHISEL TOOL DDT0320  0.375 X 2.000 60°   0.010" RADIUS
DIAMOND CHISEL TOOL DDT0325  0.375 X 2.000 60°   0.015" RADIUS
DIAMOND CHISEL TOOL DDT0330  0.375 X 2.000 60°   0.020" RADIUS


DIAMOND CHISEL TOOL DDT0340  0.437 X 2.000 60°   0.005" RADIUS
DIAMOND CHISEL TOOL DDT0350  0.437 X 2.000 60°   0.010" RADIUS
DIAMOND CHISEL TOOL DDT0365  0.437 X 2.000 60°   0.015" RADIUS
DIAMOND CHISEL TOOL DDT0370  0.437 X 2.000 60°   0.020" RADIUS
