Diamond Electroplated Mandrels
braemar product list, diamond wheels, diamond core drills, water swivels, diamond bandsaw blades, electroplated diamond wheels, cbn wheels, carbide burrs, diamond lapping compound
PRECISION
DIAMOND
& CBN
PRODUCTS

PHONE
480-966-9311
E-MAIL







CBN ELECTROPLATED MANDRELS
Braemar's electroplated diamond mandrels are designed to grind carbide, ceramic, quartz, fiberglass and other composite materials. We can  manufacture to meet your individual application needs, or offer our in-stock tools for quick delivery.

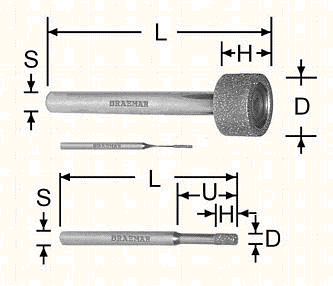

D = DIAMETER OF HEAD
H = LENGTH OF HEAD
S = DIAMETER OF SHANK
L = LENGTH OF SHANK
U = LENGTH OF UNDER CUT



DIAMOND WHEEL 0.015 X 0.060 ON A 0.125 X 2.250 SHANK 220 GRIT UNDER CUT = 0.125
DIAMOND WHEEL 0.020 X 0.060 ON A 0.125 X 2.250 SHANK 220 GRIT UNDER CUT = 0.125
DIAMOND WHEEL 0.025 X 0.080 ON A 0.125 X 2.250 SHANK 220 GRIT UNDER CUT = 0.250
DIAMOND WHEEL 0.030 X 0.080 ON A 0.125 X 2.250 SHANK 220 GRIT UNDER CUT = 0.250
DIAMOND WHEEL 0.035 X 0.080 ON A 0.125 X 2.250 SHANK 220 GRIT UNDER CUT = 0.250
DIAMOND WHEEL 0.040 X 0.120 ON A 0.125 X 2.250 SHANK 220 GRIT UNDER CUT = 0.375
DIAMOND WHEEL 0.050 X 0.120 ON A 0.125 X 2.250 SHANK 150 GRIT UNDER CUT = 0.375
DIAMOND WHEEL 0.060 X 0.160 ON A 0.125 X 2.250 SHANK 120 GRIT UNDER CUT = 0.500
DIAMOND WHEEL 0.070 X 0.160 ON A 0.125 X 2.250 SHANK 120 GRIT UNDER CUT = 0.375
DIAMOND WHEEL 0.080 X 0.160 ON A 0.125 X 2.250 SHANK 120 GRIT UNDER CUT = 0.500
DIAMOND WHEEL 0.090 X 0.160 ON A 0.125 X 2.250 SHANK 100 GRIT UNDER CUT = 0.500
DIAMOND WHEEL 0.100 X 0.160 ON A 0.125 X 2.250 SHANK 100 GRIT UNDER CUT = 0.500
DIAMOND WHEEL 0.120 X 0.160 ON A 0.125 X 2.250 SHANK 100 GRIT UNDER CUT = 0.500
DIAMOND WHEEL 0.135 X 0.200 ON A 0.125 X 2.250 SHANK 100 GRIT UNDER CUT = 0.500
DIAMOND WHEEL 0.160 X 0.200 ON A 0.125 X 2.250 SHANK 100 GRIT UNDER CUT = 0.500
DIAMOND WHEEL 0.187 X 0.250 ON A 0.125 X 2.250 SHANK 100 GRIT UNDER CUT = 0.500
DIAMOND WHEEL 0.200 X 0.250 ON A 0.250 X 3.000 SHANK 100 GRIT UNDER CUT = 0.500
DIAMOND WHEEL 0.235 X 0.315 ON A 0.250 X 3.000 SHANK 100 GRIT UNDER CUT = 0.500
DIAMOND WHEEL 0.250 X 0.325 ON A 0.250 X 3.000 SHANK 100 GRIT UNDER CUT = 0.500
DIAMOND WHEEL 0.275 X 0.375 ON A 0.250 X 3.000 SHANK 100 GRIT
DIAMOND WHEEL 0.335 X 0.375 ON A 0.250 X 3.000 SHANK 100 GRIT
DIAMOND WHEEL 0.375 X 0.375 ON A 0.250 X 3.000 SHANK 100 GRIT
DIAMOND WHEEL 0.500 X 0.500 ON A 0.375 X 3.000 SHANK 100 GRIT
DIAMOND WHEEL 0.625 X 0.500 ON A 0.375 X 3.500 SHANK 100 GRIT
DIAMOND WHEEL 0.750 X 0.500 ON A 0.375 X 3.500 SHANK 100 GRIT
DIAMOND WHEEL 1.000 X 0.500 ON A 0.375 X 3.500 SHANK 100 GRIT
