0.700″- 1.500″ Diamond Plated Milling Tools
Diamond Electroplated Milling Tools are precision cutting and grinding tools that have a single layer of diamond grit bonded to their surface using an electroplating process (typically nickel plating). This manufacturing method ensures each diamond particle is securely held in place for aggressive cutting and high precision.
Electroplated Diamond Key Features
- Single-layer diamond coating → All abrasive grains are exposed, giving sharp, fast-cutting action.
- Nickel electroplating → Provides strong adhesion of diamond particles to the tool body.
- Custom profiles possible → Shapes can be tailored for specific milling operations.
- Excellent edge definition → Ideal for intricate milling and contour shaping.
Plated Diamond Advantages
- Fast material removal due to sharp, exposed diamond particles.
- High precision in profile milling and surface finishing.
- Good heat dissipation because the open structure reduces friction.
- Can be made for complex geometries that sintered diamond tools might not handle well.
Common Applications
Electroplated diamond milling tools are widely used for hard, brittle, and wear-resistant materials such as:
- Glass & fused silica (e.g., precision optics)
- Ceramics (technical ceramics, alumina, zirconia)
- Stone & composites (granite, marble, quartz)
- Carbide & hardened steels (in specific applications)
- Advanced composites (CFRP, GFRP)
- Crystal & semiconductor materials (sapphire, silicon, GaAs)
Tool Types
- Ball-nose milling tools – for 3D contouring and surface finishing.
- End mills – for slotting, pocketing, and edge milling.
- Profile mills – for complex shapes and patterns.
- Router bits – for high-speed CNC milling.
- Custom form tools – tailored for specialty grooves, chamfers, or radii.
Call (480) 966-9311 or Add to Quote for pricing.

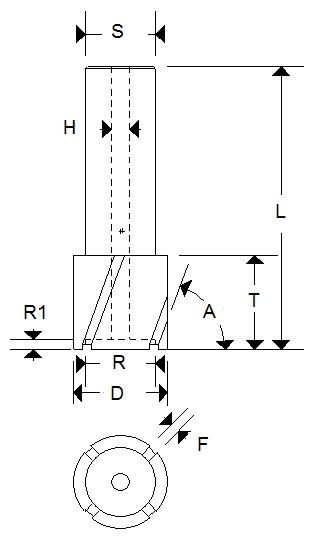

Specifications
Item #
0021784
0046789
0046787
0046782
0187181
0159831
0187182
0061652
5085-004
0186011
0186013
65596
65598
65600
65601
0010443
PT00353P
D
Diameter
0.730
0.750
0.750
0.750
0.750
1.000
1.000
1.000
1.000
1.000
1.000
1.000
1.000
1.000
1.000
1.250
1.500
T
Depth
0.395
0.250
0.300
0.750
0.750
0.540
1.000
1.000
1.000
1.750
1.750
1.750
1.750
1.750
1.750
1.000
0.625
S
Shank
0.375
0.250
0.500
0.500
0.500
0.750
0.500
0.750
0.500
0.750
0.750
0.750
0.750
0.750
0.750
0.500
0.750
L
Length
3.000
2.000
4.500
3.750
3.500
4.000
3.500
4.000
3.000
4.750
4.750
4.750
4.750
4.750
4.750
3.000
3.625
H
Thru Hole
N/A
N/A
N/A
N/A
N/A
0.250
N/A
N/A
N/A
0.187
0.187
N/A
N/A
N/A
N/A
0.125
N/A
R
Relief
0.530
0.750
0.350
0.350
0.500
0.700
0.750
0.325
0.600
0.800
0.750
0.750
0.500
0.750
0.750
0.613
1.000
R1
Relief Depth
0.050
0.080
0.080
0.080
0.025
0.080
0.025
0.100
0.100
0.150
0.150
0.150
0.050
0.150
0.150
0.125
0.100
Slots:SPIRAL
OR STRAIGHT
0.065 ST
0.080 ST
0.050 ST
0.050 SP
0.100 ST
0.080 ST
0.100 ST
0.100 ST
0.100 SP
0.100 SP
0.100 SP
0.100 SP
0.100 SP
0.100 SP
0.100 SP
0.100 SP
0.100 SP
G
Grit
140/170
100/120
040/060
060/080
080/100
270/320
080/100
080/100
170/200
040/060
040/060
040/060
200/230
200/230
040/060
040/060
140/170
Item #:
0021784
D
Diameter:
0.730
T
Depth:
0.395
S
Shank:
0.375
L
Length:
3.000
H
Thru Hole:
N/A
R
Relief:
0.530
R1
Relief Depth:
0.050
Slots:SPIRAL
OR STRAIGHT:
0.065 ST
G
Grit:
140/170
