Full Ball Diamond Dresser

The Braemar USA Full Ball Diamond Dresser is a precision form-dressing tool designed to plunge dress accurate concave radii into conventional abrasive grinding wheels. Its full-radius diamond tip reproduces a controlled radius in the wheel, making it ideal for applications that require consistent forms, tight tolerances, and repeatable grinding results.
Each dresser combines a precisely shaped diamond with a rigid steel shank for stable, controlled wheel contact. As a result, manufacturers can produce accurate wheel profiles while minimizing vibration, chatter, and dimensional variation.

Precision Plunge Dressing for Concave Wheel Radii

A Full Ball Diamond Dresser uses its preformed spherical diamond radius to generate a corresponding concave radius in the grinding wheel. Unlike a standard single-point dresser that must be moved through a programmed path, a full-ball tool can create the required radius through a controlled plunge-dressing operation.
This method simplifies setup and helps produce repeatable wheel forms. Therefore, it is particularly useful in production environments where the same radius must be maintained across multiple parts or dressing cycles.

Benefits of Full Ball Diamond Dressers

• Precisely formed diamond radius for accurate plunge dressing
• Produces consistent concave radii in grinding wheels
• Simplifies repeatable form-dressing operations
• Rigid steel shank for stable, low-vibration performance
• Clean, controlled dressing action
• Restores wheel sharpness and abrasive exposure
• Helps maintain part geometry and dimensional accuracy
• Reduces wheel loading, heat, vibration, and chatter
• Available in multiple standard radius sizes
• Custom radii and shank configurations available

Grinding-Wheel Compatibility

Braemar USA Full Ball Diamond Dressers are commonly used with:
• Aluminum-oxide grinding wheels
• Silicon-carbide grinding wheels
• Ceramic and sintered-alumina abrasive wheels
• Conventional vitrified-bond grinding wheels
• Surface, cylindrical, OD, and ID grinding machines
• Manual and CNC dressing systems
Wheel compatibility depends on the abrasive, bond, grit size, wheel dimensions, and dressing conditions. These tools are primarily intended for conventional abrasive wheels. Contact Braemar USA before using a diamond dresser on a diamond or CBN grinding wheel.

Common Full-Ball Dresser Applications

Full Ball Diamond Dressers are well suited for:
• Concave-radius wheel dressing
• Precision plunge-form dressing
• Grinding-wheel truing and conditioning
• Form grinding
• Surface and cylindrical grinding
• Tool and die manufacturing
• Punch, mold, and gauge production
• Aerospace and automotive component grinding
• Medical and precision-instrument manufacturing
• High-volume production grinding

Standard Full Ball Diamond Dresser Sizes

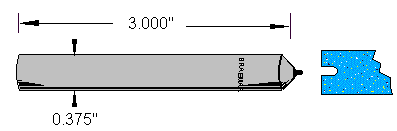

Braemar USA standard Full Ball Diamond Dressers feature a 0.375-inch shank diameter and a 3.000-inch overall length. Available diamond radii include:
• 0.005 inch
• 0.010 inch
• 0.015 inch
• 0.020 inch
• 0.025 inch
• 0.031 inch
• 0.035 inch
• 0.062 inch
The correct radius should be selected according to the required grinding-wheel profile and finished-part geometry.

Standard and Custom Radius Dressing Tools

In addition to standard sizes, Braemar USA can manufacture Full Ball Diamond Dressers with custom radii, shank diameters, overall lengths, diamond grades, and mounting configurations. These options allow the tool to match specific grinders, dressing systems, wheel specifications, and part requirements.
Contact Braemar USA for help selecting a Full Ball Diamond Dresser that delivers precise wheel radii, consistent part geometry, and dependable production performance.

Call (480) 966-9311 or Add to Quote for pricing.
