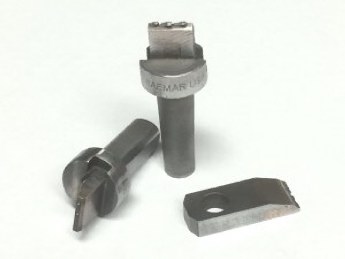

BLADE STYLE DIAMOND DRESSERS
 |
 |
|
Blade diamond tools are designed for angle, step, and radius dressing requirements for cylindrical, surface, and centerless grinding machines. These tools can be manufactured with a straight or taper shank to fit your diamond tool holder. Also these tools are commonly manufactured for insert holders for CNC grinding centers.
HOLDER
STYLE
|
SHANK
DIAMETER
|
TOOL
LENGTH
|
DIAMOND
SIZE
|
NUMBER
OF DIAMONDS
|
SHANK
|
TAPERED
|
1.750"
|
.33 CT.
|
3
|
SHANK
|
0.437"
|
1.750"
|
.33 CT.
|
3
|
HOLDER
STYLE
|
INSERT
SIZE
|
MOUNTING
HOLE
|
DIAMOND
SIZE
|
NUMBER
OF DIAMONDS
|
INSERT
|
0.125" X 0.400" X 0.200"
|
0.250"
|
.33 CT.
|
3
|
INSERT
|
0.125" X 0.400" X 0.200"
|
0.250"
|
.50 CT.
|
3
|
